How to Use a Diamond Wire Saw for Profiling

Profiling with a diamond wire saw is a precise and efficient method for cutting and shaping various hard materials, such as stone, concrete, and ceramics. This process is critical in industries ranging from construction and mining to sculpture and monument making. In this guide, we will delve into the intricacies of using a diamond wire saw for profiling, covering everything from equipment setup to safety measures and maintenance.



Introduction to Diamond Wire Saws

Diamond wire saws are cutting tools that use a metal wire embedded with diamond abrasives to cut through hard materials. The wire is looped around the material to be cut and moved back and forth, or continuously in one direction, to achieve the desired profile. The diamond particles provide the necessary cutting power, making these saws ideal for precision work.



Advantages of Diamond Wire Saws

  1. Precision:Diamond wire saws allow for highly accurate cuts, making them ideal for intricate profiling tasks.
  2. Minimal Waste: The thin wire results in minimal material waste compared to traditional saws.
  3. Versatility: They can cut through a variety of materials, including very hard stones like granite and marble.
  4. Reduced Heat: The cutting process generates less heat, reducing the risk of thermal damage to the material.
  5. Lower Noise and Dust: Diamond wire saws produce less noise and dust, contributing to a safer and cleaner working environment.



Equipment and Setup

Before starting the profiling process, it is essential to ensure that all equipment is properly set up. Here’s a step-by-step guide:

  1. Selection of the Diamond Wire Saw

Choose a diamond wire saw suitable for the specific material and profile you intend to cut. Factors to consider include:

  • Wire Type: Different wire types are designed for different materials. For instance, a wire with a higher concentration of diamonds is better for harder materials.
  • Machine Specifications:Ensure that the saw’s motor power, wire speed, and cutting capabilities match the requirements of your project.
  1. Preparing the Material

Secure the material to be cut in a stable position. Use clamps or a vice to hold it firmly in place to prevent any movement during cutting.

  1. Setting Up the Wire

Install the diamond wire on the saw according to the manufacturer’s instructions. Ensure that the wire is tensioned correctly to avoid sagging or snapping. The tension should be checked regularly during the operation.

  1. Calibrating the Saw

Calibrate the saw to the desired cutting parameters, such as wire speed and cutting pressure. These parameters will vary depending on the material’s hardness and the complexity of the profile.



Profiling Process

Once the equipment is set up, you can begin the profiling process. Follow these steps for optimal results:

  1. Marking the Profile

Mark the desired profile on the material using a template or a marking tool. This will serve as a guide during the cutting process.

  1. Initial Cuts

Start with initial cuts to outline the profile. These cuts do not need to be precise; their purpose is to remove excess material and create a rough shape.

  1. Precision Cutting

Follow the marked profile with the diamond wire saw, making slow and steady cuts. It is crucial to maintain a consistent speed and pressure to ensure a smooth and accurate profile.

  1. Cooling and Lubrication

During the cutting process, continuously cool and lubricate the wire and the material. This can be achieved using water or a specialized coolant. Proper cooling prevents the wire from overheating and reduces friction, which prolongs the wire’s lifespan and improves cutting efficiency.

  1. Inspecting the Cut

Periodically stop the saw to inspect the cut. Ensure that the profile is being followed accurately and make any necessary adjustments.

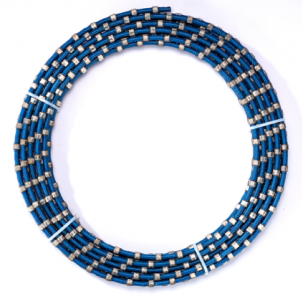

DIAMOND WIRE SAW

Safety Measures

Working with diamond wire saws requires adherence to strict safety protocols to prevent accidents and injuries:

  • Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, gloves, ear protection, and a dust mask or respirator.
  • Training:Ensure that all operators are adequately trained in using the diamond wire saw and are familiar with the specific equipment being used.
  • Machine Guards: Make sure all safety guards are in place and functional before starting the saw.
  • Workspace Safety: Keep the workspace clean and free of obstructions. Ensure that there is adequate lighting and ventilation.
  • Emergency Procedures:Be familiar with emergency shutdown procedures and have first aid supplies readily available.



Maintenance of Diamond Wire Saws

Regular maintenance is essential to keep the diamond wire saw in optimal condition and prolong its lifespan. Key maintenance tasks include:

  1. Cleaning

After each use, clean the saw and the diamond wire thoroughly to remove any debris and coolant residue. Use a soft brush and mild detergent if necessary.

  1. Inspecting the Wire

Regularly inspect the diamond wire for signs of wear, such as flat spots or missing diamond segments. Replace the wire if it shows significant wear or damage.

  1. Lubrication

Lubricate all moving parts of the saw according to the manufacturer’s recommendations. This reduces friction and prevents premature wear.

  1. Checking Tension

Ensure that the wire tension is correct before each use. Proper tensioning is crucial for effective cutting and wire longevity.

  1. Monitoring Coolant

Check the coolant system regularly to ensure it is functioning correctly. Refill or replace the coolant as needed to maintain optimal cooling and lubrication.



Troubleshooting Common Issues

Despite careful setup and maintenance, you may encounter issues during the profiling process. Here are some common problems and their solutions:

  1. Wire Breakage

Cause: Excessive tension, improper handling, or material defects.

Solution: Reduce wire tension, handle the wire carefully, and inspect the material for any flaws before cutting.

  1. Uneven Cuts

Cause: Inconsistent wire speed or pressure, improper setup.

Solution: Ensure consistent speed and pressure, and verify that the saw is set up correctly.

  1. Overheating

Cause: Inadequate cooling or excessive cutting speed.

Solution: Improve cooling with more frequent or higher volume coolant application, and reduce cutting speed.

  1. Reduced Cutting Efficiency

Cause: Dull wire or incorrect wire type.

Solution: Replace the wire if it is worn out, and ensure you are using the appropriate wire for the material.



Applications of Diamond Wire Saws

The versatility of diamond wire saws makes them suitable for a wide range of applications:

  1. Construction: Cutting and shaping concrete, marble, granite, and other building materials for architectural elements and structural components.
  2. Mining and Quarrying:Extracting large blocks of stone with precision, minimizing waste and maximizing yield.
  3. Sculpture and Art:Creating intricate shapes and profiles in stone and other hard materials for artistic projects.
  4. Monument Making:Profiling and detailing stones for monuments, gravestones, and memorials.
  5. Industrial Manufacturing: Cutting specialized components from hard materials for various industrial applications.



Conclusion

Profiling with a diamond wire saw is a precise, efficient, and versatile method for cutting and shaping hard materials. By selecting the appropriate equipment, setting it up correctly, and following proper procedures, you can achieve highly accurate profiles with minimal waste and effort. Safety and maintenance are paramount in ensuring the longevity of the equipment and the safety of the operators. With careful attention to detail and adherence to best practices, diamond wire saws can be an invaluable tool in a wide range of industries and applications.
