How to Dig a Post Hole Through an Existing Concrete Slab?

When it comes to home improvement or construction projects, one often encounters the need to dig post holes for various installations like fencing, decking, or even mailboxes. But what do you do if there’s an existing concrete slab in the way? Digging through concrete is a more challenging task that requires the right tools and techniques to ensure a clean, safe, and precise hole. This article will guide you through the process of digging a post hole through an existing concrete slab using essential tools like drill bits and core drilling methods.

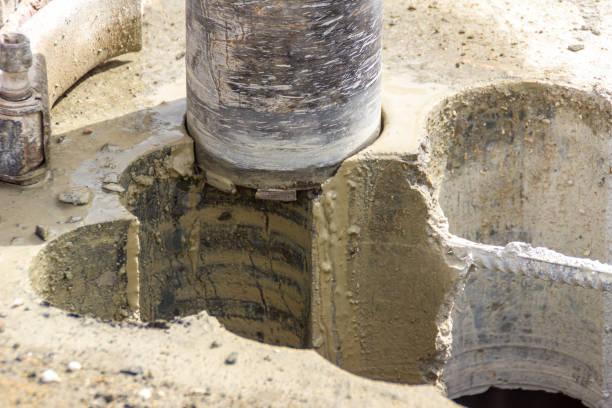

Core drill bit

Tools and Materials Needed

Before starting, gather the following tools and materials:

– Safety gear (gloves, safety glasses, ear protection)

– Measuring tape

– Chalk or marker

– Heavy-duty drill

– Core drill (preferably a wet core drill)

– Diamond-tipped core drill bit

– Sledgehammer

– Chisel

– Shovel

– Post hole digger

– Water source and hose (if using a wet core drill)

– Vacuum cleaner (for dust control)



Step-by-Step Guide

Step 1: Planning and Preparation

  • Safety First: Always wear appropriate safety gear. Concrete drilling can produce a significant amount of dust and noise, so protect your eyes, ears, and lungs.
  • Location Marking: Identify and mark the exact spot on the concrete slab where you need to dig the post hole. Use a measuring tape for precision and mark the center point with chalk or a permanent marker.

Step 2: Choosing the Right Drill Bit and Core Drill

  • Drill Selection:A heavy-duty drill is essential for this task, but the star of the show is the core drill. Core drills are specifically designed for cutting through tough materials like concrete.
  • Core Drill Bit: Choose a diamond-tipped core drill bit. The diameter of the bit should match the size of the hole you need. Diamond tips are preferred because they are robust and can cut through concrete efficiently.

Step 3: Setting Up the Core Drill

  • Wet vs. Dry Core Drilling: Wet core drilling is often recommended for concrete as it helps to keep the drill bit cool, reduces dust, and prolongs the life of the bit. If using a wet core drill, ensure you have a water source and a hose connected to the drill.
  • Mounting the Drill: Secure the core drill to the concrete slab. Some drills come with a suction base, while others might need to be anchored. Make sure it is stable to prevent wobbling, which can result in an uneven hole.

Step 4: Drilling the Concrete

Core drill bit

  • Starting the Drill: Begin by drilling at a low speed to create a guide hole. This initial phase is crucial for ensuring that the drill bit does not slip.
  • Full Drilling Speed: Once the guide hole is established, increase the speed gradually. Apply steady pressure, but do not force the drill, as this could damage the bit or the drill itself.
  • Cooling and Dust Control: If using a wet core drill, keep a constant flow of water to cool the bit and manage dust. For dry drilling, periodically stop to vacuum the dust and prevent overheating.

Step 5: Breaking Through the Concrete

  • Drilling Completion:Continue drilling until you penetrate through the entire thickness of the concrete slab. The process might take some time depending on the slab’s thickness and the drill’s power.
  • Removing the Core:Once the core drill has cut through, you will have a cylindrical piece of concrete. Remove this piece carefully. You may need a chisel and a sledgehammer to free it completely.

Step 6: Digging the Post Hole

  • Clearing Debris:Clear away any concrete debris from the hole. Use a vacuum cleaner if necessary to ensure a clean working area.
  • Excavating the Hole: With the concrete out of the way, use a shovel and a post hole digger to excavate the soil to the desired depth for your post. The depth will depend on the type of post and the stability required.
  • Soil Considerations:If the soil is particularly hard or rocky, you may need additional tools like a digging bar to break up the ground.

Step 7: Setting the Post

  • Post Preparation:Once the hole is dug, place the post into the hole. Ensure it is straight and at the correct height.
  • Backfilling: Fill the hole with a mixture of concrete or gravel to secure the post. For added stability, use a level to ensure the post remains vertical as the concrete sets.
  • Finishing Touches: Allow the concrete to cure properly according to the manufacturer’s instructions before applying any stress to the post.



Tips and Precautions

Tool Maintenance: Keep your drill bits and core drill in good condition. Regular maintenance and proper cleaning after use will extend their lifespan.

  1. Safety Measures: Always adhere to safety guidelines. The dust generated during concrete drilling can be hazardous. Ensure adequate ventilation if working indoors.
  2. Professional Help:If you’re not comfortable handling heavy-duty tools or the task seems too daunting, don’t hesitate to seek professional help. Core drilling services are available and can save you time and effort.
  3. Utility Check:Before drilling, check for any underlying utilities. Use a utility locator tool to avoid damaging electrical wiring, plumbing, or gas lines.
  4. Patience and Precision: Rushing the drilling process can lead to mistakes. Take your time to ensure the hole is drilled accurately and safely.



Conclusion

Digging a post hole through an existing concrete slab may seem like a formidable task, but with the right tools and a methodical approach, it can be accomplished efficiently. Core drilling, with the aid of diamond-tipped drill bits, is the most effective method for this job, ensuring a clean and precise hole through the concrete. Remember to prioritize safety, plan thoroughly, and maintain your tools to achieve the best results. Whether you’re installing a new fence, building a deck, or erecting a mailbox, this guide provides you with the knowledge needed to navigate through concrete and achieve a sturdy post installation.
