Verso Vacuum Brazed Blade for General Purpose



A: Blade Diameter
B: Arbor Diameter
H: Segment Height
T: Blade Thickness

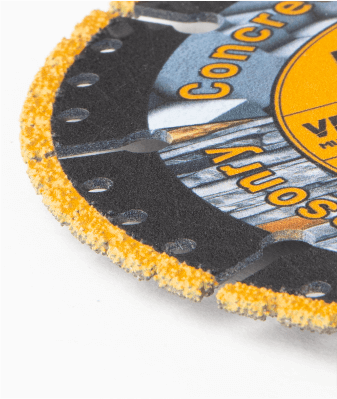

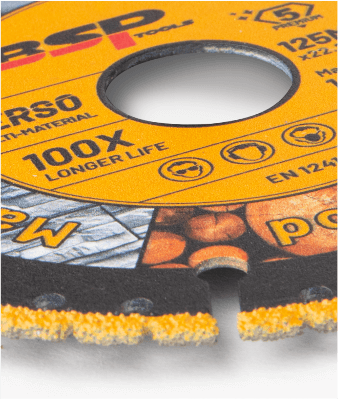

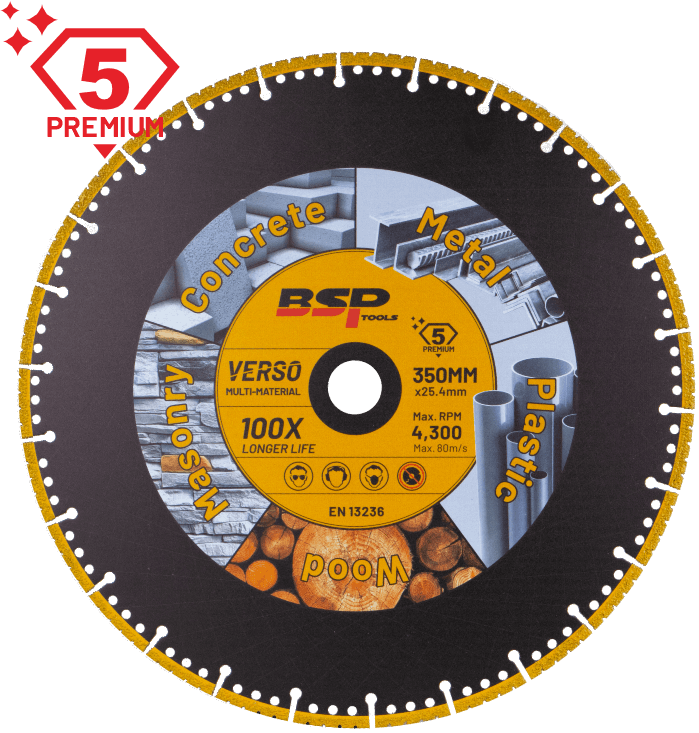

Verso Vacuum brazed diamond blades are durable, versatile tools for cutting various materials like metal, concrete, and stone. The vacuum brazing process bonds diamond particles to the blade, ensuring sharpness and longevity. Perfect for both professionals and DIY tasks, they deliver reliable performance across diverse applications.

Specification
Art. Nr. Dia. (A) Hole. (B) Thick.(T) sEG.(H)
VB3S105143 105mm 22.23mm 1.4mm 3mm
VB3S115143 115mm 22.23mm 1.4mm 3mm
VB3S125143 125mm 22.23mm 1.4mm 3mm
VB3S180143 180mm 22.23mm 2.0mm 4mm
VB3S230143 230mm 22.23mm 2.2mm 4mm
VB3S350143 350mm 25.40mm 3.0mm 4mm
