Matrix Pro Welded Core Bit
Matrix Diamonds:
A new core bitwith segments containing orderlyarranged Diamond grits.
Applications:
Concrete, reinforced concrete, lime sandstone,
bricks, natural stone, masonry, granite and hard
materials > 2.0 density.
High end diamond core drill with Matrix diamonddisplay segment. Very good performance forreinforcement concrete..
- Special diamond geometry.
- Very fast speed
- Evenly drilling
- High life span
Speed ★★★★★
Lifetime ★★★★☆
Reinfocement ★★★★☆
Specification

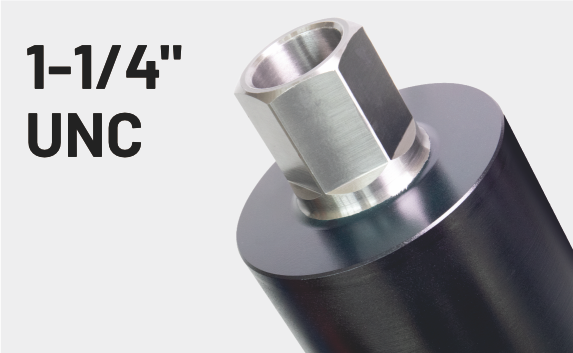

| Dia(mm) | Segment Details | Shank Type | Drilling Depth | Ar. No. |
|---|---|---|---|---|
| 52 | 5x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1052 |
| 56 | 5x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1056 |
| 63 | 6x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1063 |
| 67 | 6x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1067 |
| 72 | 7x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1072 |
| 76 | 7x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1076 |
| 83 | 8x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1083 |
| 89 | 8x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1089 |
| 92 | 8x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1092 |
| 102 | 9x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1102 |
| 108 | 10x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1108 |
| 114 | 10x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB1114 |
