Diamond Saw Blades for Wall Machine
BSP diamond wall saw blades are characterized by reliable cutting behavior in almost all situations, combined with high cutting performance and long tool life. They are well-suited to cutting reinforced concrete and difficult aggregates.
- Arbor holes: 25.4mm, 35mm, 50mm, 60mm are available
- All pitch circles possible
- Sandwich core design available
- Cutting width:T=4.0 for 614-1014 possible and T=4.4, 4.7, and 5.00 for 614-1606 possible
They include three series:

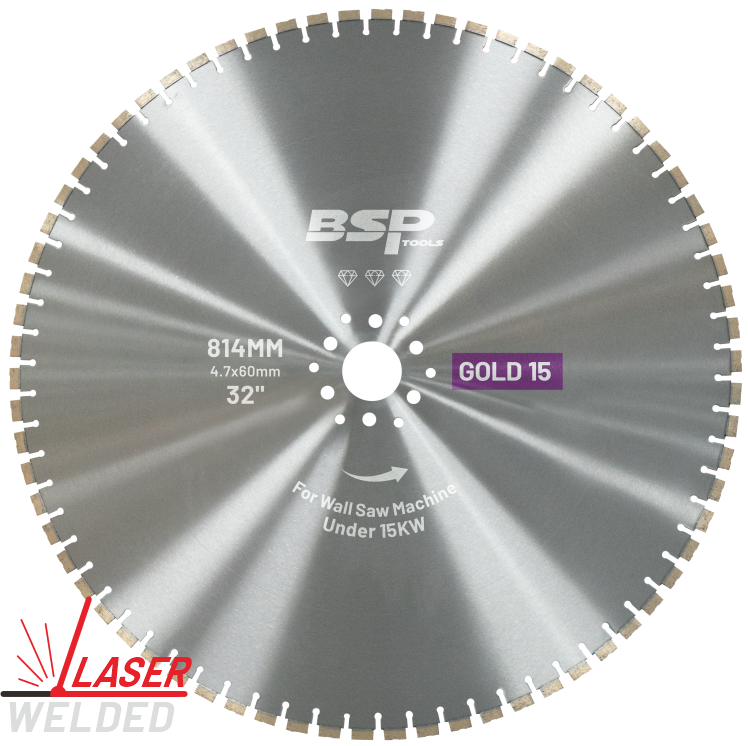

GOLD 15
For wall sw machine under 15KW
| Dia. (mm) | C.H (mm) | Segment Dimensions | Side Hole | |||
|---|---|---|---|---|---|---|
| L (mm) | H (mm) | T (mm) | Seg. Nr. | |||
| 614 | 60 | 24 | 12 | 4.4 | 52 | 80/110/130 |
| 714 | 60 | 24 | 12 | 4.4 | 62 | |
| 814 | 60 | 24 | 12 | 4.4 | 70 | |
| 908 | 60 | 24 | 12 | 4.4 | 79 | |
| 1014 | 60 | 24 | 12 | 4.7 | 87 | |
| 1208 | 60 | 24 | 12 | 4.7 | 106 | |
| 1306 | 60 | 24 | 12 | 4.7 | 114 | |
| 1406 | 60 | 24 | 12 | 4.7 | 132 | |
| 1506 | 60 | 24 | 12 | 4.7 | 140 | |

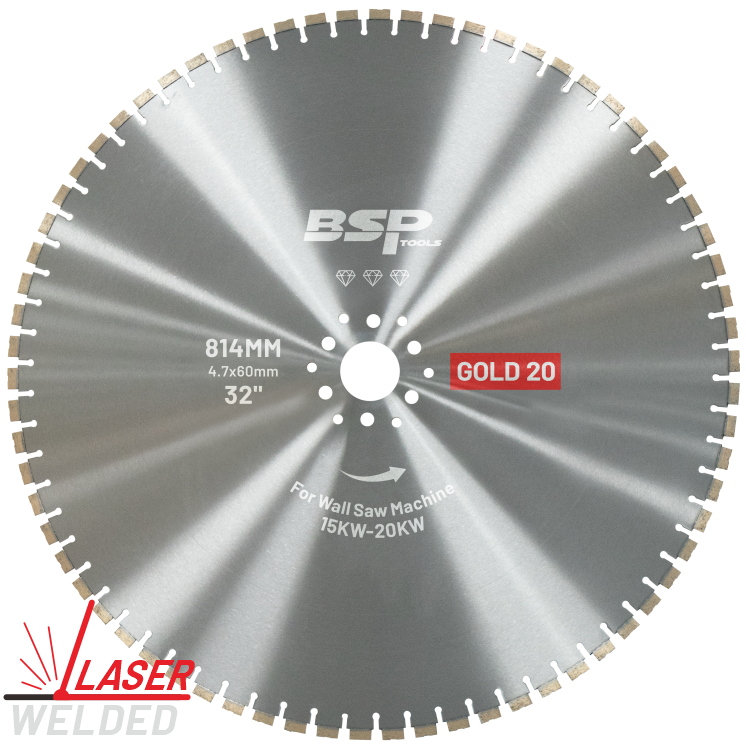

GOLD 20
For wall saw machine under 15KW-20KW
| Dia. (mm) | C.H (mm) | Segment Dimensions | Side Hole | |||
|---|---|---|---|---|---|---|
| L (mm) | H (mm) | T (mm) | Seg. Nr. | |||
| 614 | 60 | 24 | 12 | 4.7 | 52 | 80/110/130 |
| 714 | 60 | 24 | 12 | 4.7 | 62 | |
| 814 | 60 | 24 | 12 | 4.7 | 70 | |
| 908 | 60 | 24 | 12 | 4.7 | 87 | |
| 1014 | 60 | 24 | 12 | 4.7 | 106 | |
| 1208 | 60 | 24 | 12 | 4.7 | 114 | |
| 1306 | 60 | 24 | 12 | 4.7 | 123 | |
| 1406 | 60 | 24 | 12 | 4.7 | 132 | |
| 1506 | 60 | 24 | 12 | 4.7 | 140 | |

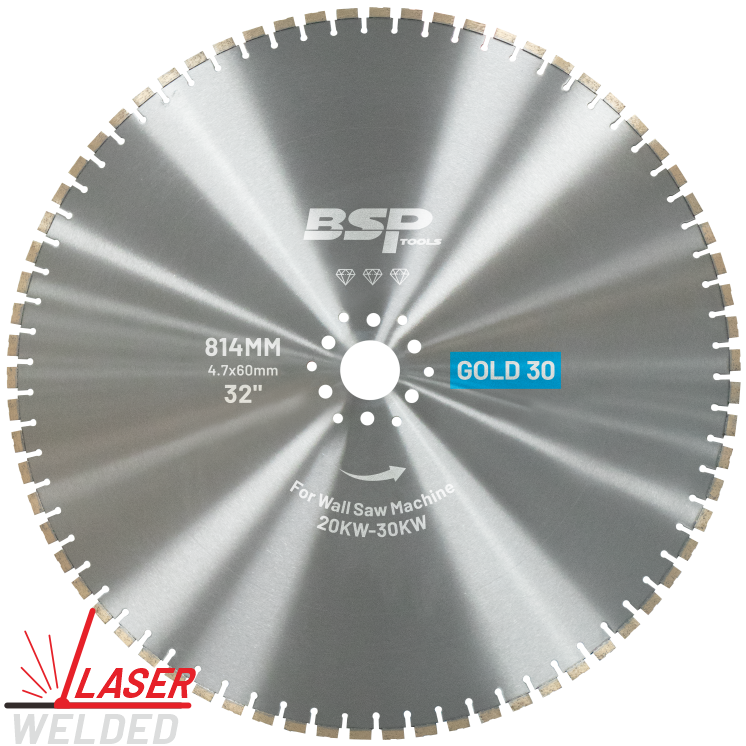

GOLD 30
For wall saw machine under 20KW-30KW
| Dia. (mm) | C.H (mm) | Segment Dimensions | Side Hole | |||
|---|---|---|---|---|---|---|
| L (mm) | H (mm) | T (mm) | Seg. Nr. | |||
| 614 | 60 | 24 | 12 | 4.4 | 52 | 80/110/130 |
| 714 | 60 | 24 | 12 | 4.4 | 62 | |
| 814 | 60 | 24 | 12 | 4.4 | 70 | |
| 908 | 60 | 24 | 12 | 4.4 | 79 | |
| 1014 | 60 | 24 | 12 | 4.7 | 87 | |
| 1208 | 60 | 24 | 12 | 4.7 | 106 | |
| 1306 | 60 | 24 | 12 | 4.7 | 114 | |
| 1406 | 60 | 24 | 12 | 4.7 | 132 | |
| 1506 | 60 | 24 | 12 | 4.7 | 140 | |
All versions also available in sandwich core design(noise reduction of up to 10 dB(A)).More versions available on request
