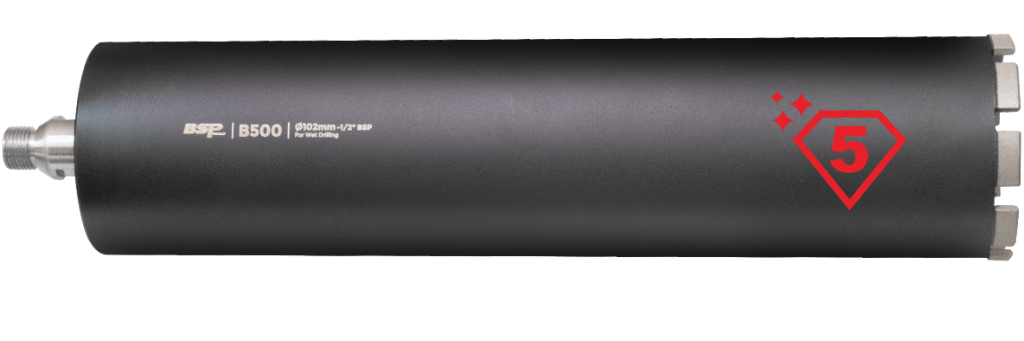

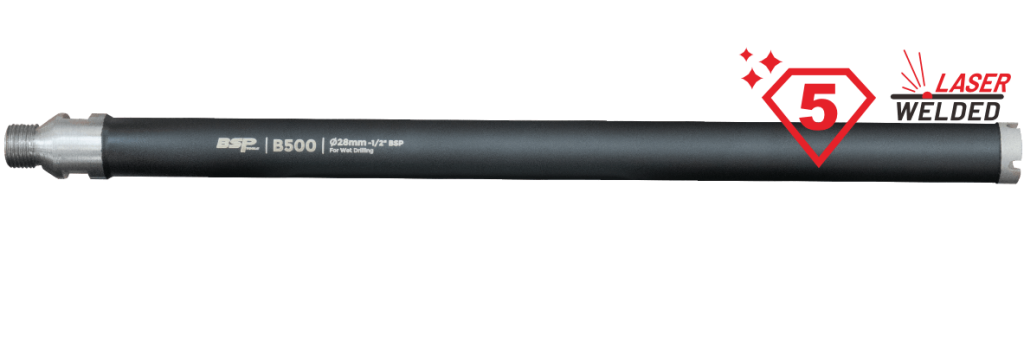

B500 Premium Laster Welded Core Bit
Applications：

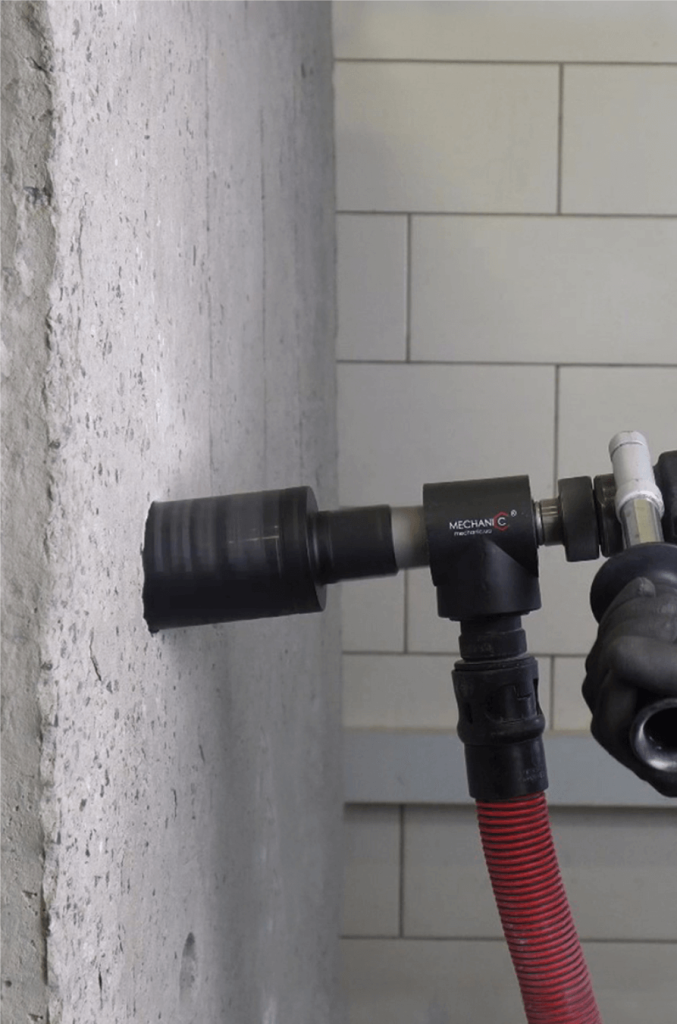

Reinforcement concrete,concrete,solid brickssand bricks.

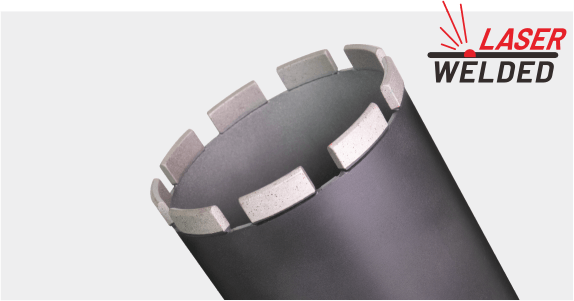

Laser weld diamond core drill with M typesegment.Very good performance for reinforcedconcrete.
- Easy start in Concrete
- Fast speed
- Consist drilling
- High life span
- Good for cut steel barin concrete
Speed ★★★★☆
Lifetime ★★★★★
Reinfocement ★★★★☆
Specification
| Dia(mm) | Segment Details | Shank Type | Drilling Depth | Ar. No. |
|---|---|---|---|---|
| 52 | 5x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2052 |
| 56 | 5x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2056 |
| 63 | 6x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2063 |
| 67 | 6x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2067 |
| 72 | 7x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2072 |
| 76 | 7x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2076 |
| 83 | 8x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2083 |
| 89 | 8x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2089 |
| 92 | 8x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2092 |
| 102 | 9x24x3.5×10 | 1-1/4″ UNC | 400mm | WCB2102 |
